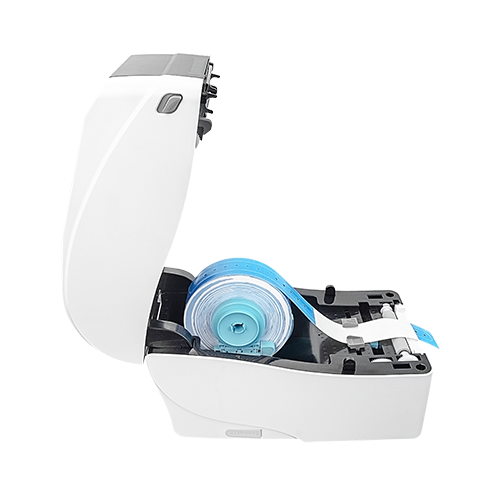

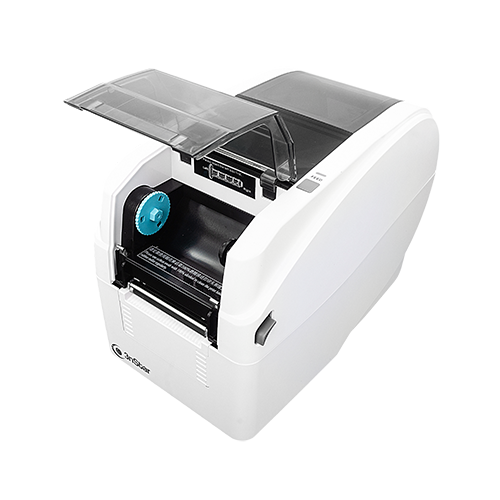

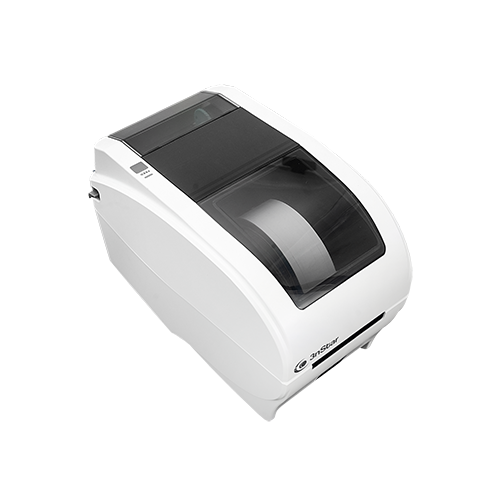

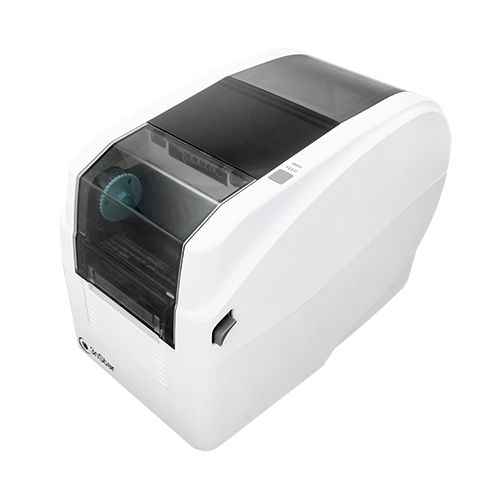

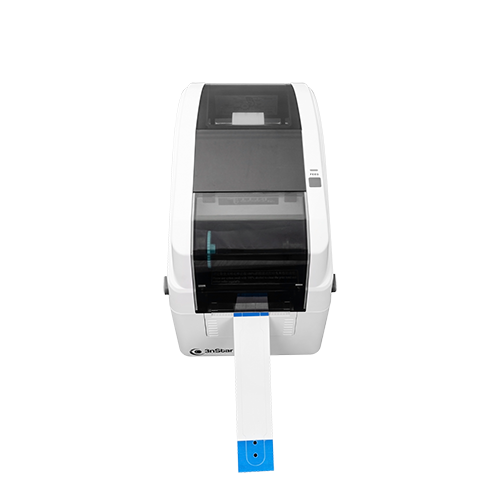

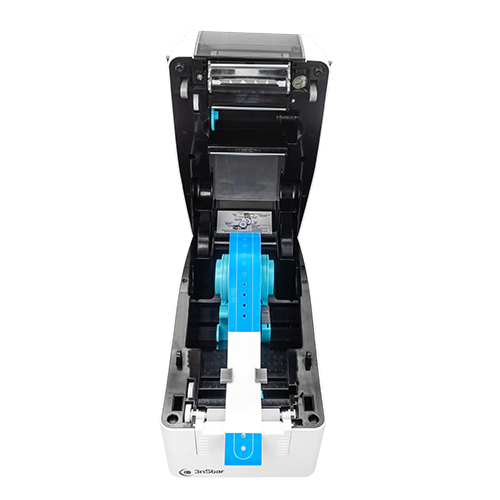

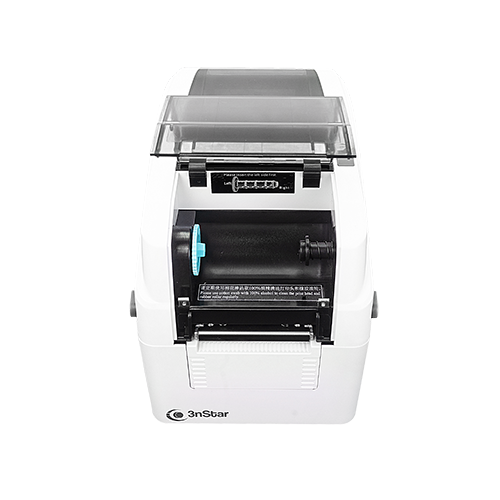

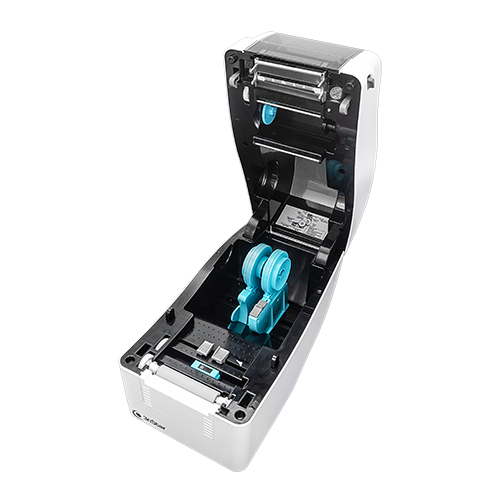

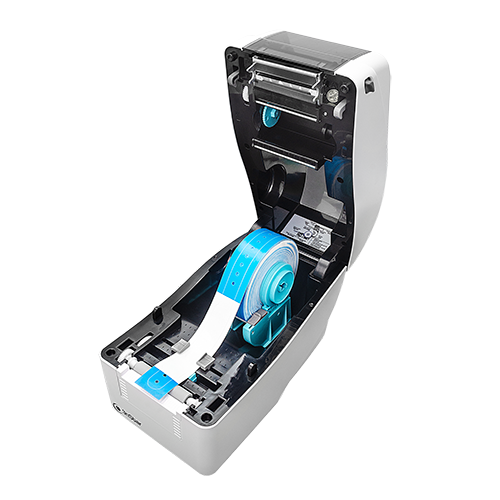

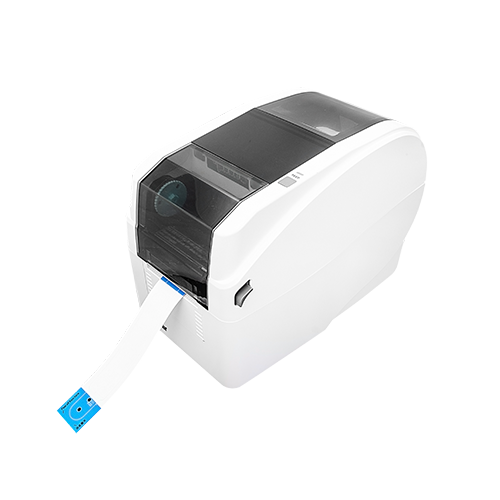

3nStar LTT422 2" Direct Thermal/Thermal Transfer Label Wristbands Printer - USB & LAN Interface -
The 3nStar LTT422 is a high-performance wristband printer designed for precise and reliable printing needs, particularly in environments such as healthcare, hospitality, and event management.
This printer offers a high-resolution output of 300 dpi, ensuring clear and legible text and barcodes on wristbands up to 2 inches in width. Its compact and space-saving design makes it suitable for various settings where space might be limited.
The 3nStar LTT422 wristband printer combines high-resolution printing with a user-friendly interface, making it an excellent choice for environments that require reliable and efficient wristband printing solutions.
Features:
- Thermal Transfer and direct thermal printing
- Support Ribbons up to 110m (360 ft)
- 8MB SDRAM, 8MB Flash
- 300 dpi resolution
- Bartender Label Printing Software
- 6 IPS (127mm/s) high printing speed
- TSPL Emulation (EPL, ZPL, DPL)
Physical
Construction
Double-walled plastic
Color White
Printer Dimension 170 mm (W) x 245 mm (D) x 145 mm (H)
Net Weight 1.65kg
Printing
Printing Method Direct Thermal & Thermal Transfer
Printing Speed 152mm/S (6 IPS)
Resolution 12 dots/mm (300DPI)
Max Printing Width 54mm (2.12")
Max Printing length 889mm (35")
Media Specifications
Media Type Continuous, gap, black mark, fan-fold and punched hole
Media Width 25.4-60mm (1.0”-2.3”)
Media Thickness 0.06~0.254mm (2.36"~10mil")
Label length 10~889mm (0.39"~35")
Label Roll Diameter 127 mm (5“)
Label Roll Core 25.4 ~ 76.2 mm (1 "~ 3")
Ribbon
Core 12.7mm (0.5")
Width 25.4mm-54mm (1"-2.12")
Max Roll Diameter 127mm (5")
Max Length 110m (360ft)
Features
Sensor Black mark reflective sensor, Cover open sensor, Gap
sensor, Ribbon End Sensor
Processor 32-bit RISC
Memory 8MB Flash Memory, 8MB SDRAM, Micro SD card reader for
Flash memory expansion, up to 4 GB

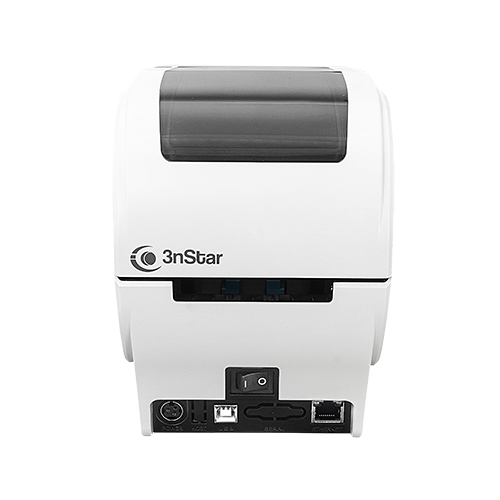

Interface USB+LAN
Software
Emulation TSPL, EPL, ZPL, DPL
Compatibility Windows, Linux, Android, Mac OS
1D Barcode Printing
Code 39, Code 93, Code 128UCC, Code 128, subsets A, B,
C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128,
UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,
MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
2D Barcode Printing PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation 0°, 90°, 180°, 270°
Drivers 4BARCODE 4B-3062TA
Electrical
Power Supply Input AC 110V/240V,50~60Hz (Adapter)
Power Supply Output DC 24V/2.5A
EMC FCC, CE, CCC, CB
Environmental
Operating Temperature 5 ~ 40° C（41~104° F)
Storage Temperature -40° to 60° C (-40~140° F)
Operating Humidity 25 ~ 85% non-condensing
Storage Humidity 10 ~ 90% non-condensing
Packaging
In the Box Windows labeling software driver and user manual CD,
Quick start guide, USB cable, Power cord, External
switching power adapter
Box Dimension 185 mm (W) × 325 mm (D)× 212 mm (H)
Gross Weight 2.4Kg
Warranty 1 Year
