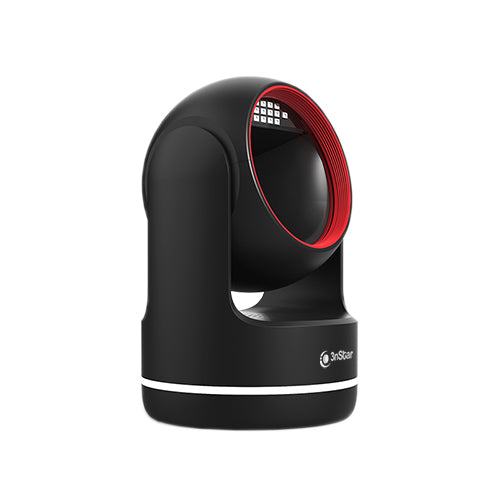

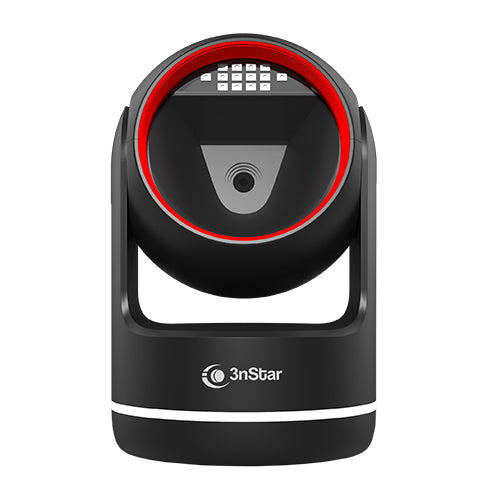

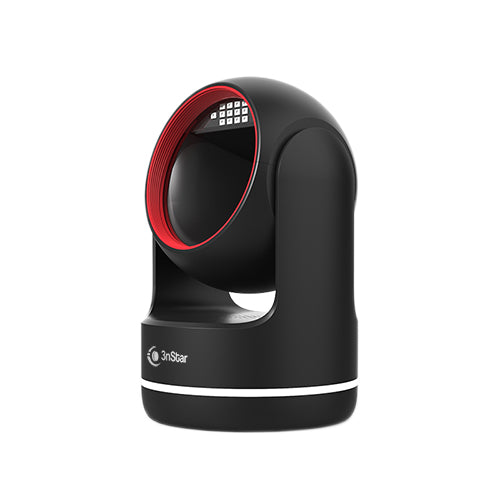

3nStar 2D Hands Free Omni-directional Barcode Scanner SC506 USB
Enhance your retail experience with the SC506 Omnidirectional scanning solution, designed to cater to the diverse needs of retailers at an affordable cost. This compact, lightweight, and rugged device is optimized to elevate both customer satisfaction and employee efficiency.
The SC506 Omnidirectional scanner features an intuitively located sweet spot, ensuring ease of use, and boasts a rapid scan speed of 60 frames per second. Its versatility is further emphasized by a tiltable scanning head, offering a 60° range to effortlessly accommodate objects of varying sizes and shapes.
|
· Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D barcodes, including poor quality. · Adjustable Scan Head: Ability to tilt scanner 60 degrees for targeted scanning or larger products. · 1.5mt (5ft) Drop Resistance |
· Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass. · Mobile Devices Reading: Scans coupons, mobile tickets and digital wallets from the screens. · Compatible Operating Systems: Windows, Mac OS, Linux, Android, IOS
|
|
Physical |
|
|
Construction |
ABS + PC |
|
Color |
Black |
|
Dimensions |
152mm(H) x 98mm(L) x 98mm(W) |
|
Weight |
350g |
|
Cable |
Standard 1.8M straight |
|
Features |
|
|
Scan Rate |
60 Frames per second |
|
Depth of field |
5-280mm @ (13mil UPC/EAN 100%, PCS=90%) |
|
Antiknock design |
Withstand 1.5m (5 ft.) drops |
|
Interface |
USB and USB virtual Com (Optional RS232) |
|
Compatibility |
Windows, Linux, Android, Mac OS |
|
Performance |
|
|
Optical System |
1280 x 800 pixels |
|
Resolution |
3 mil |
|
Light Source |
Red Led |
|
Field of View |
Deflection 360° Inclination ±65° Rotation ±60° |
|
Print Contrast |
15% @ UPC/EAN |
|
Photo Sensor |
CMOS Array Sensor |
|
Visual Indicator/Display |
LEDs, Speaker - Tone and Volume adjustable |
|
Decode Capability 1D |
Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar(RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, etc |
|
Decode Capability 2D |
PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code |
|
Electrical |
|
|
Voltage |
5V DC +/- 10% |
|
Power consumption |
<450mA |
|
Static Current |
<236mA |
|
Electrical Safety |
IEC61000 |
|
EMI/RFI |
EN 55032:2015 |
|
Environmental |
|
|
Operating Temperature |
-10°C to 50°C (14°F to 122°F) |
|
Operating Humidity |
5% to 90% relative humidity, non-condensing |
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Storage Humidity |
5% to 90% relative humidity, non-condensing |
|
Light Levels |
Fluorescent Light : 5000 Lux max, Direct Sun Light: 100,000 Lux max |
|
Packaging |
|
|
In the Box |
Scanner, Cable & User Manual |
|
Carton Size |
105mm x 105mm x 170mm |
|
Gross Weight(kg) |
0.50Kg. |
|
Warranty |
1 Year |
