A currency counter so advanced, its simple

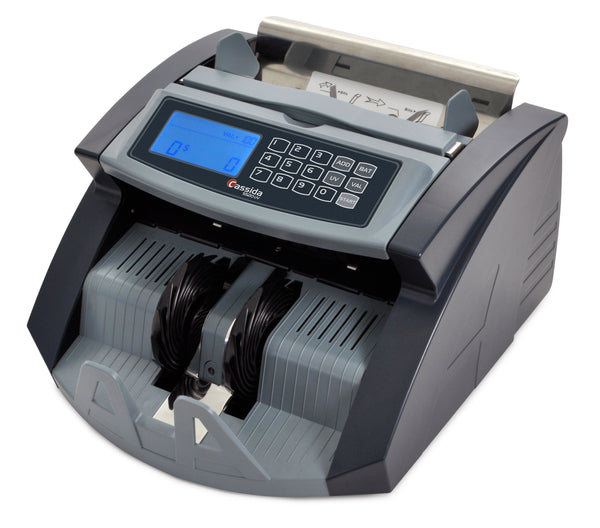

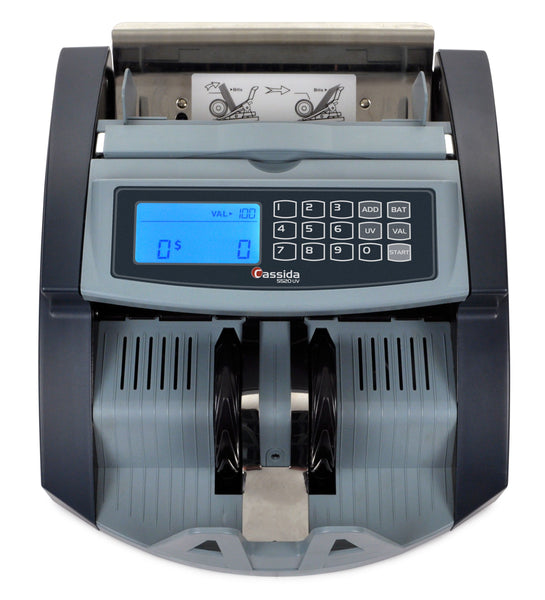

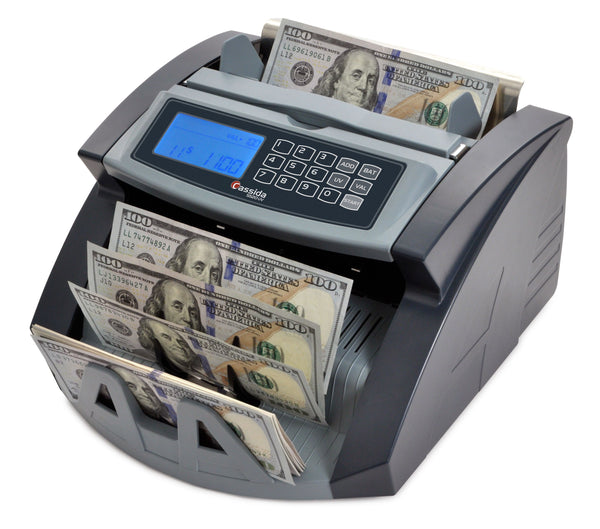

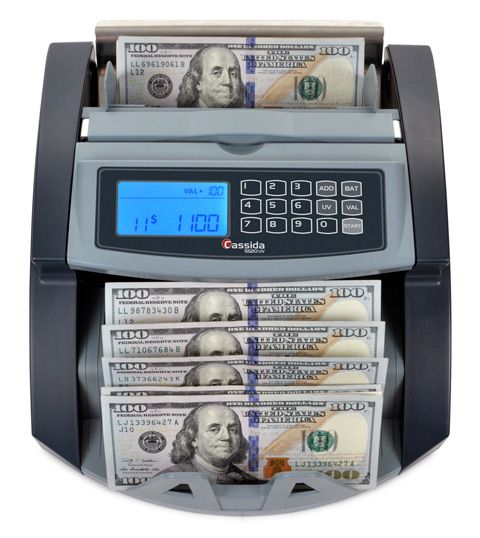

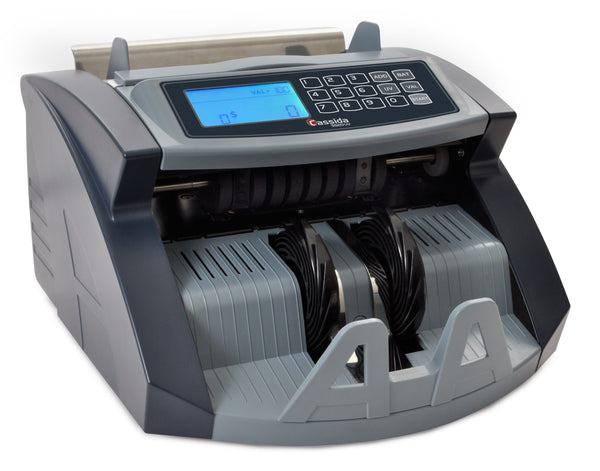

The Cassida 5520 is a professional currency counter designed with users in mind. Equipped with features designed to save time and simplify operation, it is ready to take on a variety of cash-processing jobs.
User friendly
Intuitive operation, simple controls, and automatic features make the Cassida 5520 easy to operate.
Half, double and chain note detection
Infrared sensors are able to spot a wide range of bill discrepancies, including half, double, and chain notes. In all cases, the 5520 will stop the count, alert the user with a beep, and display the error type on its screen.
Counterfeit detection
Ultraviolet (UV and UV/MG models), and magnetic sensors (UV/MG model) are able to detect a wide range of counterfeit bills. Once a counterfeit is detected, the 5520stops the count and dispenses the suspect bill into its stacker for removal.
Mobile
Lightweight and compact, the Cassida 5520 is easily transported using the built-in handle. Its contemporary styling blends with any business environment.
Specifications
Counts 1,300 bills/min
Operating modes: ValuCountTM, count, add, and batch modes; add + batch mode
->Authenticates bills using ultraviolet (5520 UV) and magnetic (5520 UV/MG) sensors
Infrared sensors detect chain, double, and half notes
Snap-open front cover, self-diagnostic system, and self-lubricating bearings
Rugged, heavy-duty construction
Batch presets plus programmable 1-100
Maintenance kit included (cleaning cloth, cleaning brush, currency counter cleaning card)
Spare parts kit included (set of feed rollers, hopper mat, drive belt, screwdriver)
Operating modes: ValuCountTM, count, add, batch, add + batch
Auto-start feature: Included
Error detection: half, double, chain
Error alert: Audio and visual alert system
Counterfeit detection: UV (UV model), MG (UV/MG model)
Counting Speeds: 1300 bills/min
Hopper capacity: 300 bills (new)
Stacker capacity: 300 bills (new)
Batch size: Presets or 1-100 bills

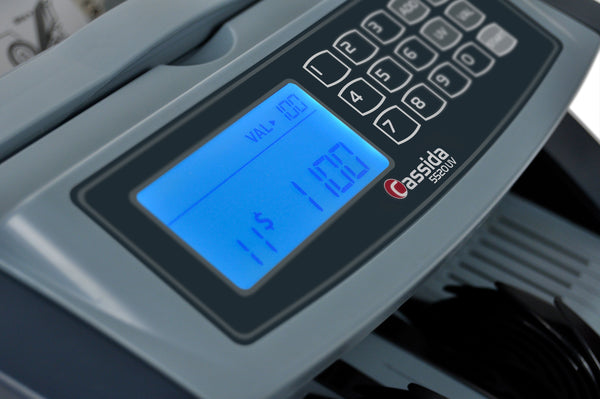

Screen type: LCD
Dimensions, unit: 10.9'w x 9.9'd x 6.2'h (277mm x 251mm x 157mm)
Dimensions, box: 13.3'w x 12.8'd x 9.5'h
Weight, unit: 11.9 lb (4.5 kg)
Weight, box: 13.6 (6.2 kg)
Power input: 110VAC 50-60 Hz
Power consumption: <80 watts
Warranty: 1-year parts and labor warranty
Options: Remote display
UPC:
5520 UV/MG
857287002100
