IC-215P-AW4-W10
Stand is sold separately - Part #SS-215-A1
DESCRIPTION
The IC-215P-AW4-W10 is equipped with a Celeron® 3965U processor, standard with 8GB DDR4 memory and 128GB storage. Combining computing performance, and enterprise control with our industry leading touch experience enables an effortless and reliable solution for a variety of applications. Designed with an ultra-modern, slim aesthetic, versatile I/O selections and edgeless touch brings to life a true value-add experience for customers. It offers flexibility from POS to an exposed kiosk, self-service to point-of-information, and landscape to portrait. The IC-215P-AW4-W10 offers peripherals, MSR and Camera Module Kit, to support a wide range of applications, making it a perfect form, fit and function solution.
FEATURED SPECIFICATIONS
- Size: 21.5” TFT LCD
- Processor: Celeron® 3965U (2.20 GHz, 2M Cache)
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 250 nits (No Touch), 225 nits (P-CAP)
- View Angle: H: 178˚, V: 178˚
- Video Port: 1 x Mini DP
- Warranty: 3 year
SPECIFICATIONS
SYSTEM CONFIGURATION
Processor: Celeron® 3965U (2.20 GHz, 2M Cache)
GPU: Intel® HD Graphic 620
System Memory: 8GB So-DIMM DDR4, 2133 MHz
Storage Device: 128GB SSD
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac, Bluetooth 4.2 (Support BLE)
TOUCH LCD DISPLAY
Touch Screen: Projected Capacitive Touch, 10 points
Brightness: 250 nits (No Touch), 225 nits (P-CAP)
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
View Angle: H:178°, V:178°
Display Surface: 7H Hardness Durable Glass

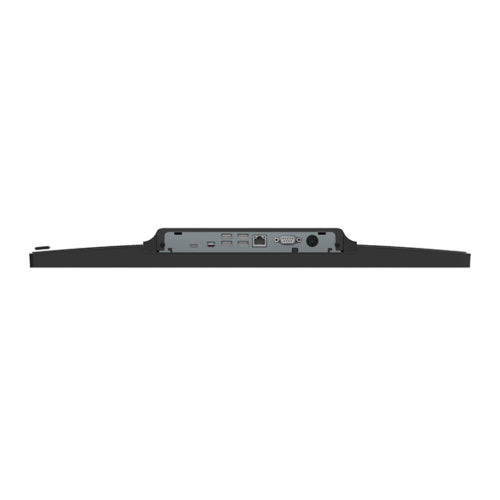

I/O PORTS
Serial Port: 1 x RS-232 (DB9, NA/5V/12V, BIOS Selectable)
USB Port: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A, 1 x USB 3.1 Type C (Support Display ALT Mode and PD2.0, support 5V/3A , 12V/2.5A output, maximum 30W)
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x Mini DP
Power Input: 1 x DC in 24V/5A 4 pin, via 24V/120W External Power Adapter
OPERATING SYSTEM SUPPORT
OS: Windows® 10
PHYSICAL PROPERTIES
Speaker: 2 x 2W
Material: Plastic, Glass, SECC Metal
Housing Color: Dark Gray
Dimensions (W x H x D) mm: 510.96 mm x 322.28 x 172.98 mm
Net Weight (kg): 6.77 kg
Gross Weight (kg): 9.79 kg
Carton (W x H x D) mm: 615 mm x 450 mm x 330 mm
VESA: 100 mm x 100 mm
SAFETY
Certifications: CE, FCC, LVD, UL, RoHS
ENVIRONMENT
Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
BOX CONTENTS/WHAT'S IN THE BOX
Touch Computer, Power Cord, DC Power Supply, Screw & IO Cover
OPTIONAL PERIPHERAL
MSR: MSR-215-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)
OPTIONAL/REPLACEMENT ACCESSORIES
120W Power Supply | Adapter 24V 120W EA11011M(T34) EDAC: PS-3316012011F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV
