IC-156P-AW2-W10
Stand is sold separately - Part #SS-156-A1
DESCRIPTION
The IC-156P-AW2-W10 is equipped with an Intel® 7th Gen i5 processor, standard with 8GB DDR4 memory and 128GB storage. Combining computing performance and enterprise control with our industry leading touch experience enables an effortless and reliable solution for a variety of applications. Designed with an ultra-modern, slim aesthetic, versatile I/O selections and edgeless touch brings to life a true value-add experience for customers. It offers flexibility from POS to an exposed kiosk, self-service to point-of-information, and landscape to portrait. The IC-156P-AW2-W10 offers peripherals, MSR and Camera Module Kit, to support a wide range of applications, making it a perfect form, fit and function solution.
FEATURED SPECIFICATIONS
- Size: 15.6” TFT LCD
- Processor: Core i5 7300U (2.60 GHz, 3M Cache)
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 450 nits (No Touch), 405 nits (P-CAP)
- View Angle: H: 178˚, V: 178˚
- Video Port: 1 x Mini DP
- Warranty: 3 year
SPECIFICATIONS
SYSTEM CONFIGURATION
Processor: Core i5 7300U (2.60 GHz, 3M Cache)
GPU: Intel® HD Graphic 620
System Memory: 8 GB So-DIMM DDR4 2133 MHz
Storage Device: 128GB SSD
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac, BlueTooth 4.2 (Support BLE)
TOUCH LCD DISPLAY
Touchscreen: Projected Capacitive Touch, 10 points
Brightness: 450 nits (No Touch), 405 nits (P-CAP)
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
View Angle: H:178˚, V:178˚
Display Surface: 7H Hardness durable glass

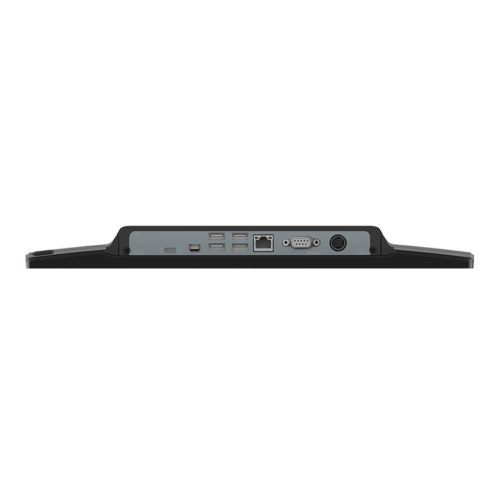

I/O PORTS
Serial Port: —
USB Port: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A, 1 x USB 3.1 Type C (5V @3A output), 1 x USB 3.1 Type C (Support Display ALT Mode and PD2.0, support 5V/3A , 12V/2.5A output, maximum 30W)
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x Mini DP
Power Input: 1 x DC-in via 24V 120W External Power Adapter
OPERATING SYSTEM SUPPORT
OS: Windows® 10
Speaker: 2 x 2W
Material: Plastic, Glass, SECC-Metal
Housing Color: Dark Gray
Dimensions (W x H x D) mm: 369.1 x 223.7 x 35.2 mm (Computer Only)
Net Weight (kg): 4.01 kg
Gross Weight (kg): 6.01 kg
Carton (W x H x D) mm: 470 mm x 380 mm x 340 mm
VESA: 100 mm x 100 mm
SAFETY
Certifications: CE, FCC, LVD, UL, RoHS
ENVIRONMENT
Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
BOX CONTENTS/WHAT'S IN THE BOX
Touch Computer, Power Cord, DC Power Supply, Screw & IO Cover
OPTIONAL PERIPHERAL
MSR: MSR-156-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)
Stand: SS-156-A1 (Sold Separately)
OPTIONAL/REPLACEMENT ACCESSORIES
120W Power Supply | Adapter 24V 120W EA11011M(T34) EDAC: PS-3316012011F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV
