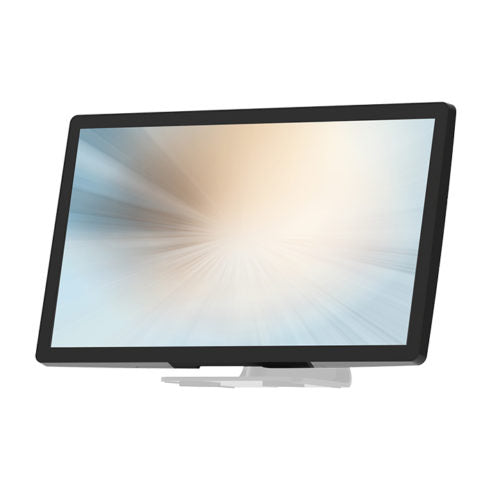

IC-215P-AW1-W10

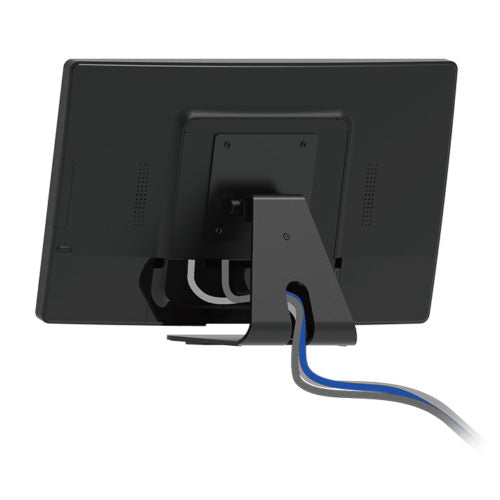

Stand is sold separately - Part #SS-215-A1
DESCRIPTION
The IC-215P-AW1-W10 is equipped with a Celeron® J1900 processor, standard with 8GB DDR3L memory and 128GB storage. Combining computing performance, support of Microsoft legacy OS versions, and enterprise control with our industry leading touch experience enables an effortless and reliable solution for a variety of applications. Designed with an ultra-modern, slim aesthetic, versatile I/O selections and edgeless touch brings to life a true value-add experience for customers. It offers flexibility from POS to an exposed kiosk, self-service to point-of-information, and landscape to portrait. The IC-215P-AW1-W10 offers peripherals, MSR and Camera Module Kit, to support a wide range of applications, making it a perfect form, fit and function solution.
FEATURED SPECIFICATIONS
- Size: 21.5" TFT LCD
- Processor: Celeron® J1900 (2.0 GHz, 2M Cache)
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 250 nits (No Touch), 225 nits (P-CAP)
- View Angle: H: 178˚, V: 178˚
- Video Port: 1 x VGA
- Warranty: 3 year
SPECIFICATIONS
SYSTEM CONFIGURATION
Processor: Celeron® J1900 (2.0 GHz, 2M Cache)
GPU: Integrated Intel® HD Graphic Engine
System Memory: 8GB So-DIMM DDR3L, 1333 MHz
Storage Device: 128GB SSD
Wi-Fi & Bluetooth: 802.11 a/b/g/n/ac, Bluetooth 4.2 (Support BLE)
TOUCH LCD DISPLAY
Touch Screen: Projected Capacitive Touch, 10 points
Brightness: 250 nits (No Touch), 225 nits (P-CAP)
Contrast Ratio: 1000:1
Aspect Ratio: 16:9
View Angle: H:178°, V:178°
Display Surface: 7H Hardness Durable Glass

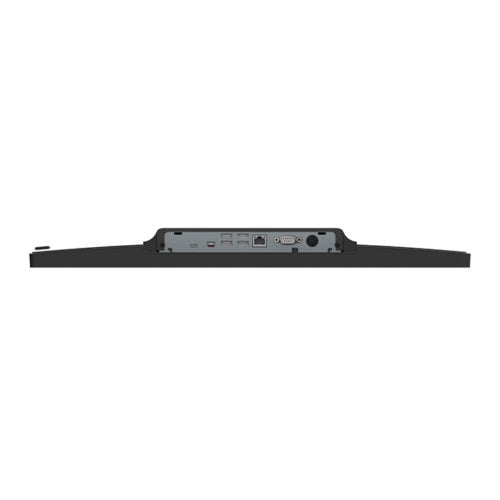

I/O PORTS
Serial Port: 2 x RS232 (RJ50 Type)
USB Port: 4 x USB 2.0 Type A
LAN Port: 1 x RJ45 Giga LAN
Video Port: 1 x VGA
Audio Port: 1 x Line Out
DC Output: 1 x DC Out 12V/1A 2 Pin
Power Input: 1 x DC in 12V/5A 4 pin, via 60W External Power Adapter
OPERATING SYSTEM SUPPORT
OS: Windows® 7 & 10
Speaker: 2 x 2W
Material: Plastic, Glass, SECC Metal
Housing Color: Dark Gray
Dimensions (W x H x D) mm: 510.96 mm x 322.28 x 172.98 mm
Net Weight (kg): 6.77 kg
Gross Weight (kg): 9.79 kg
Carton (W x H x D) mm: 615 mm x 450 mm x 330 mm
VESA: 100 mm x 100 mm
SAFETY
Certifications: CE, FCC, LVD, UL, CCC, BSMI, RoHS
ENVIRONMENT
Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature: -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
BOX CONTENTS/WHAT'S IN THE BOX
Touch Computer, Power Cord, DC Power Supply, Screw & IO Cover
OPTIONAL PERIPHERAL
MSR: MSR-215-A1 (Sold Separately)
Camera: CAM-000-A1 (Sold Separately)
OPTIONAL/REPLACEMENT ACCESSORIES
60W Power Supply | Adapter 12V 60W EA10681N(T31) EDAC: PS-3316006025F0
Cable USB C-C L2000 BK: USB-5313120024FV
Cable USB C-A L2000 BK: USB-5313120025FV
