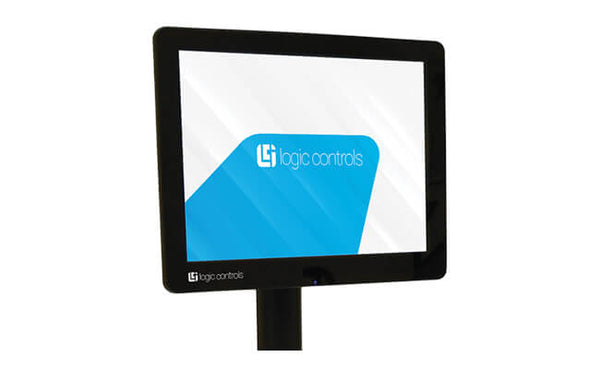

LOGIC CONTROLS LV4000 Pole Display 8 in LCD
Main features:
- 8in LCD display with LED backlight
- Optimal display resolution, 800 x 600
- Increases customer engagement at the Point of Sale
- No ventilation hole design
- Lightweight, only 1.5lbs for display (without the pole and base)
- Simple installation
- VESA 75 x 75mm wall mount standard
- True flat panel screen
- Creates great up-selling opportunities
Description
The LV4000 is an 8 inch LCD pole display which is used as a secondary monitor with supported Point of Sale software (check with your software vendor for support confirmation). The 8 inch LCD monitor can be used to deliver marketing and promotion messages to customers at the time of checkout or other identified locations. With a high 500:1 contrast ratio and 800 x 600 optimal resolution, the screen projects vivid graphics to grab customer attention it’s intended location, enhancing your overall business and customer experience.
Main Features:
- 8in LCD display with LED backlight
- Optimal display resolution, 800 x 600
- Increases customer engagement at the Point of Sale
- No ventilation hole design
- Lightweight, only 1.5lbs for display (without the pole and base)
- Simple installation
- VESA 75 x 75mm wall mount standard
- True flat panel screen
- Creates great up-selling opportunities
Specifications
MECHANICAL
Weight: 3.0 lbs (1.3 kg)
Dimensions (WxHxD): 15.7in x 7.9in x 5.9in (39.8cm x 20.0cm x 14.9cm)
Stand base: 7in (17.7cm) pole + base
Wall mount: VESA 2.9in x 2.9in (7.5 x 7.5cm)
LCD MONITOR
Display size: 8in (20.3cm)
Active area: 6.3in x 4.7in (16.2cm x 12.1cm)
Optimal resolution: 800 x 600
Brightness: 230 cd/m²
Contrast ratio: 500:1
Response time: 25 ms
LCD viewing angle
- Horizontal: 140°
- Vertical: 120°
Input signal connector: USB Type B
Input frequency
- Horizontal: 31.5-60.2 kHz
- Vertical: 56.3Hz – 75Hz
ELECTRICAL
Power consumption: USB powered, 500mA/2.5@ DC 5V +/- 5%
Power supply
- 500mA/2.5W
- DC 5V +/- 5%
ENVIRONMENTAL
Operating temperature: 32°F to 104°F
Storage temperature: 14°F to 122°F
Humidity
- Operating: 20%~80%
- Storage: 10%~90%
