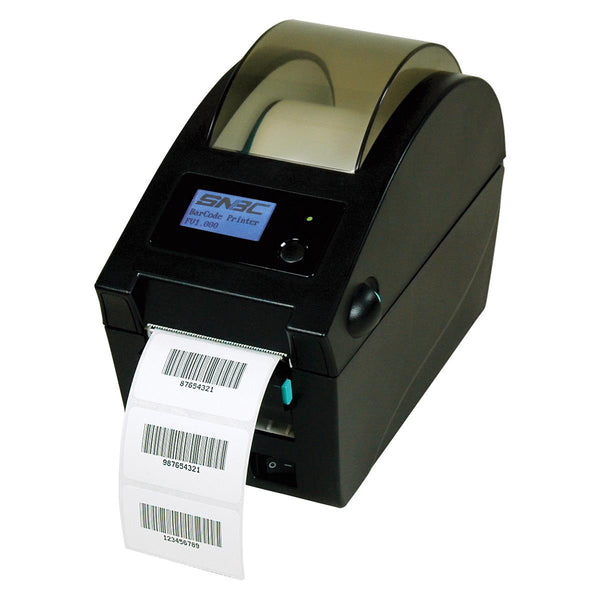

SNBC Label Printer - BTP-L520 - Black Ethernet with Peeler
2" Direct Thermal Desktop Label Printer
132063-E-BLACK
Compact High Speed Label Printer
The versatile BTP-L520 direct thermal label printer is ideal for producing wristbands, item tags and small barcode labels on a wide variety of media up to 62mm wide. Featuring a compact, space-saving design, the BTP-L520 provides fast 152mm per second printing, 4MB of fl ash memory and 8MB of SDRAM for storage of fonts and graphics.
SNBC, a leading manufacturer of specialty printers and mechanisms, is widely recognized for quality and value. Look to SNBC for the world’s most affordable label, POS and kiosk printers.
| Print Method: | Direct Thermal |
| Resolution: | 203 DPI x 203 DPI |
| Print Width: | 2-3/16" (56mm) Maximum |
| Max. Print Speed: | 6" (152mm) per Second Maximum |
| Memory - Flash: | 4MB |
| Memory - SDRAM: | 8MB |
| Sesnsors: | Adjustable Refl ective Sensor / Fixed Transmissive Sensor / Center Alignment / Top Cover Position / TPH Overheating Protection / Mark Sensor / Paper Present Sensor |
| Drivers - 32 bit: 64 bit: |
Windows® 8 / 7 / Server 2008 / Server 2003 / XP / 2000 / Vista / 10 Windows® 8 / 7 / Server 2008 / Server 2003 / XP / Vista / 10 |
| Interface: | Ethernet |
| Control Panel - Status LED: Control Button: LCD Screen: |
Power Status (Green, Orange and Red) FEED Printer Configuration / Display Status |
|
Bar Code - |
Code39 / Code93 / Code128 / EAN8 / EAN13 / Interleaved 2 of 5 Barcode / QR Code / Data Matrix / PDF417 / MicroPDF417 / UPS MaxiCode |
| Fonts: | 15 Bitmapped Fonts / One Scalable Font / Five Resident Mono-Spaced Dot Fonts / Asian Characters (Single-Byte, Double-Byte) Including Simplifi ed Chinese, Traditional Chinese, Japanese, Korean, etc. User Can Download Self- Defi ned Fonts (Bitmapped, Scalable) to FLASH or SDRAM |
| Character Modification: | Rotate 0°, 90°, 180°, 270° / Enlarge 1 ~ 8 Times / Reverse |
| Graphic Printing: | Binary Non-Format Bitmap / HEX / PCX / BMP and IMG Format Bitmap Can Be Downloaded Into FLASH and RAM |
| Language: | BPLZ / BPLE (BPLZ and BPLE is a ZPL-EPL Self Adaptation Language) |
| Code Page - Code Page: Windows: |
437 / 850 / 851 / 852 / 855 / 857 / 860 / 861 / 862 / 863 / 865 / 866 / 869 / 737 1250 / 1251 / 1252 / 1253 / 1254 / 1255 |
| Paper- Type: Label Thickness: Label Width: Maximum Roll Diameter: Label Length: Paper Out: |
Continuous / Label / Black Mark / Wristband Paper 0.06mm ~ 0.19mm 9/16" (15mm) ~ 2-7/16" (62mm) 5" (127mm) Maximum 3/8" (10mm) ~ 39-3/8" (1,000mm) Tear-Off (Standard) / Peel Off (Factory Option) |
| Reliability - Printhead Life: Cutter life: MTBF: |
Continuous Paper > 50 Km / Label Paper > 500,000 Labels (Label Length = 30mm) > 300,000 Cuts > 360,000 Hours |
| Power Supply - Input: Output: |
110 ~ 240 VAC, 50/60 Hz 24V DC, 1.5A |
|
Temperature - Operating: Storage: |
40° ~ 114°F (5° ~ 45°C) -40° ~ 140°F (-40° ~ 60°C) |
|
Humidity - Operating: Storage: |
20% ~ 90% RH Non-Condensing 20% ~ 93% RH Non-Condensing |
| Dimensions: | 4-3/8"W x 6-3/4"H x 8-11/16"D |
| Shipping Weight: | Approx. 2.44 lbs. (1.1 kg) |
| Safety and EMI: | CCC / UL / CE / CB / FCC |
