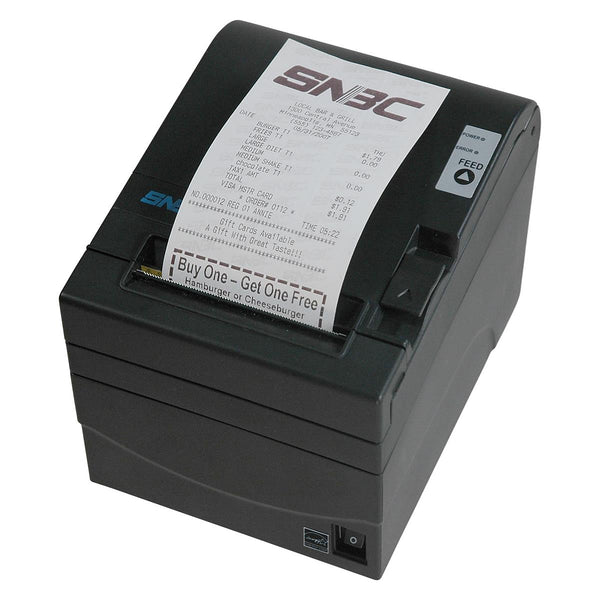

SNBC POS Thermal Printer BTP-R980 Black
Ultra-High-Speed Thermal Receipt Printer
Advanced High Speed Versatile Printer
The BTP-R980 is compatible with most popular POS software applications, many POS systems and fi ts a wide variety of miniprinter applications.
• Fast 310mm per Second Print Speed
• Dual Interface Standard – USB Interface is on the Main Board
• Serial, Parallel, Ethernet or Wireless Interface Boards Available
• Programmable Paper Saving Options
• Stores/Prints Coupon and Logo Images
• Prints Watermarks
• Extraordinary Reliability
• No Dip Switches – Intuitive Keypad Programming
• Supports Windows®, Linux® and Mac® Operating Systems
SPECIFICATIONS
| Max Print Speed - Mono 80mm: | 310mm per Second / 2ST 175mm per Second |
| Max Print Speed - Gray Scale: | 150mm per Second / 2ST 75~100mm per Sec |
| Max Print Speed - Two-Color: | 120mm per Second / 2ST 60~90mm per Sec |
| Printing Method: | Direct Thermal |
| Resolution: | 203 DPI x 203 DPI |
|
Characters Per Line - Font A: |
42 (80mm) / 37 (58mm) 56 (80mm) / 49 (58mm) |
| Characters Size - Font A: Font B: |
12 x 24 9 x 17 |
| Paper Roll Type - Width: Maximum Diameter: Paper Thickness: |
54.5mm ~ 82.5mm 83mm 0.06mm ~ 0.1mm |
| Auto Paper Cutting Method: | Auto-Cutter with Selectable Full or Partial Cut |
| Reliability - MTBF: MCBF: Printhead Life: Cutter Life: |
360,000 Hours 70,000,000 Lines 150,000,000 Characters 2,000,000 Cuts |
| Character Set - Alphanumeric: International: Graphic: |
95 37 128 x 57 Page |
| Bar Code - 1D: 2D: |
UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / CODABAR / ITF PDF417 / QR Code / MaxiCode / GS1 |
| Interpreter: | ESC/POS |
| Interface: | USB Only |
| Drivers - 32 bit: 32 and 64 bit: Other: Software Development Kit: |
POSReady 2009 / 2000 Server / 2000 Prof. / XP Home Win 8 / Win 7 / Server 2008 / Server 2003 / XP Prof. / Vista Linux / OPOS / MAC Support / BYJavaPOS Windows / BYJavaPOS Linux iOS / Android |
| Drawer Port: | Up to 2 Drawers (+24VDC) / Drawer Compulsion |
| Data Buffer - Rec. Buffer RAM: RAM Bitmap: Flash Bitmap: |
64KB 128KB 512KB |
| Power Supply: | AC 100 ~ 240 V, 50/60 Hz Adapter Included |
| Current/Power Usage: | 2.0A / 60W |
| Operating Temperature: | 40° ~ 114°F (5° ~ 45°C) |
| Operating Humidity: | 20% ~ 90% RH (Non-Condensing) |
| Dimensions | 5-3/4"W x 5-13/16"H x 7-3/4"D |
| Shipping Weight: | 8.3 lbs. (Each Unit) / 35.80 lbs. (Master Carton of 4) |
| Safety and EMI: | FCC / RoHS |
