3nStar NuStar 5sx Portable Data Collector (DC0509)

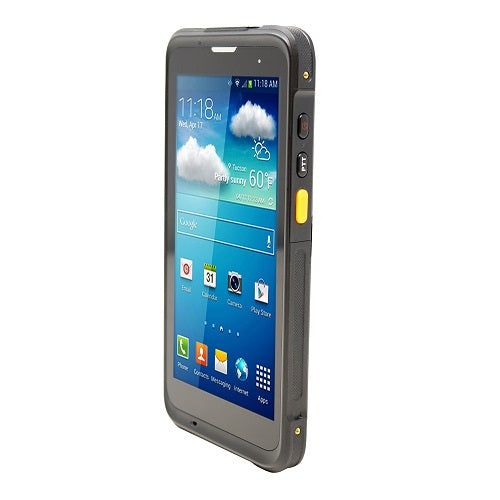

Nustar 5sx Portable Data Collector is a rugged device tested to withstand up to 1.8m drops over concrete. It also has an IP-65 rating dust-proof and water submersible and it’s capable to work continuously more than 8 hours.

• Android 11 OS
• 5.5″ sunlight-readable LCD touch screen display 720*1440 Pixels

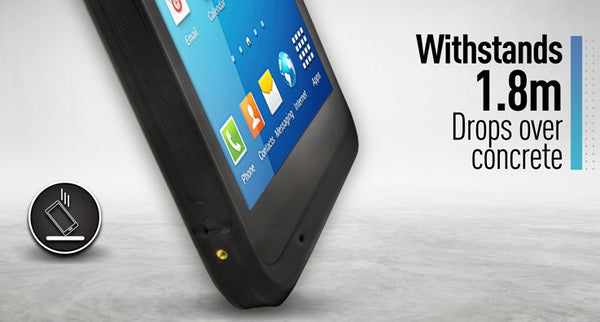

• IP65 sealing, withstand up to 1.8M drops to concrete
• Qualcomm Octa Core 1.8GHz
• 3GB RAM and 32GB storage
• Mini SD card slot that support up to 128GB
• 4G, Wi-Fi, Bluetooth and GPS
• Rechargeable and removable 4300 mAh Li-Ion battery
• Operation Time over 8 Hours

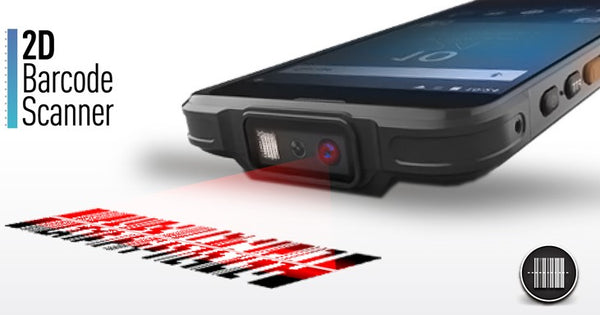

• Built-In 2D Barcode Scanner

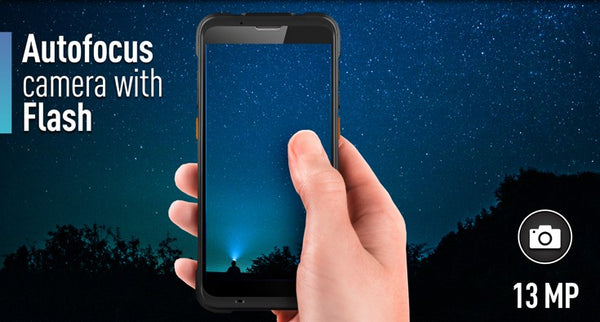

• 13MP Autofocus rear camera with flash

Physical Dimensions 160mm * 76mm * 15.5 mm
Weight 287g.
Color Black

Performance
Operating system Android 11
CPU Qualcomm Octa Core 2.0GHz
Memory RAM 3GB DDR3
Storage Nand Flash 32 GB
Sd Card Slot Micro SD/TF up to 128 GB
Sensors Gravity sensor, proximity sensor, light sensor,
accelerometer sensor, vibration motor

Connectivity
Wi-Fi Dual Band 802.11 a/b/g/n
2G GSM/EDGE: 850, 900, 1800, 1900 MHz.
3G WCDMA: 850, 900,1900,2100 MHZ.
4G LTE FDD: B2, B4, B5, B7, B8, B12, B13, B17, B28A, B28B
LTE TDD: B38

Sim Slots Dual Sim
Bluetooth Bluetooth 5.1, BR+EDR+LE
GPS GPS/A-GPS, Glonass

Interfaces
Type C USB port, 3.5mm audio port
NFC ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2

Display
Type LCD Color
Size 5.5" TFT-LCD
Resolution 720*1440 Pixels
IPS Yes

Brightness 400 Nits

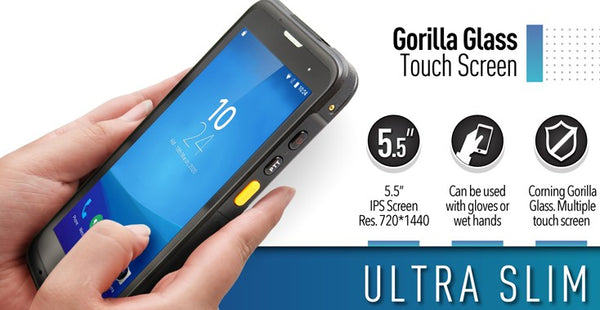

Touch Gorilla Glass, multi-touch panel, can work with gloves
and wet fingers

Input Devices

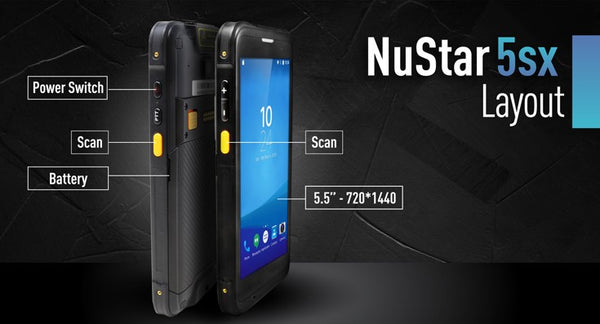

Keypad 1 power key, 2 scan keys, 2 volume keys, 1 PTT key

Scanner 2D Imager

Camera 13MP with autofocus with flash

Power and Battery

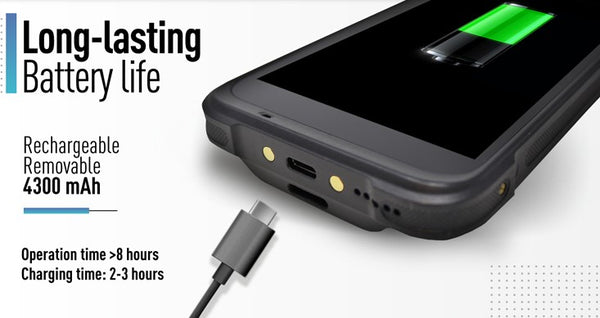

Battery Rechargeable Removable 4300mAh Lithium battery
Charger Input Adapter AC 100-240V, 50-60HZ
Duration Operation Time over 8Hours

Environmental
Operating Temperature -20℃ ~ 50℃
Storage Temperature -40℃ ~ 70℃
Humidity 5% ~ 95% (non condensing)

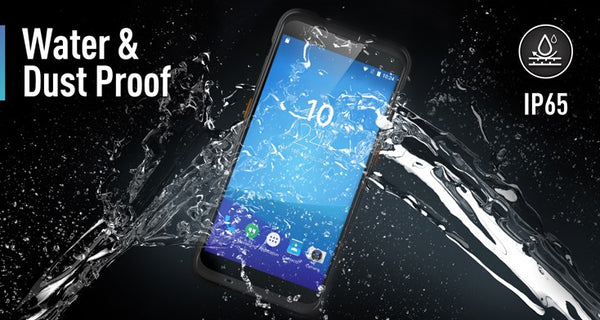

Sealing IP65

Drop Resistance 1.8m drops to concrete, 2.4m drops with the rubber
boot installed

Regulatory
Certifications CE, FCC, RoHS
Warranty 1 Year (Extended Warranty Available)
