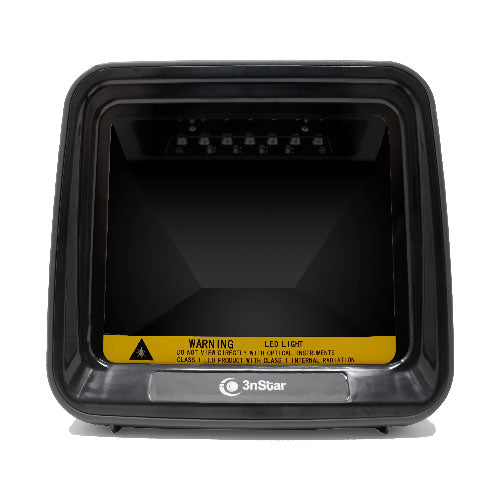

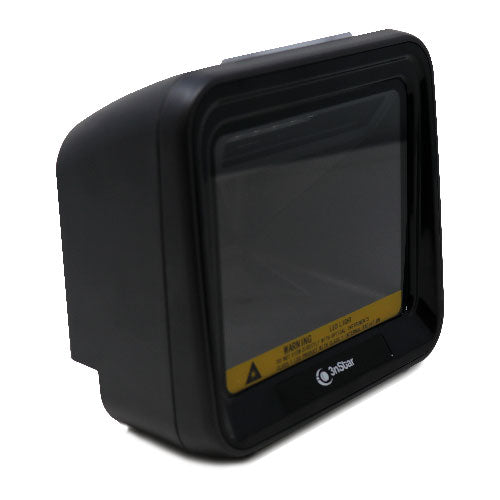

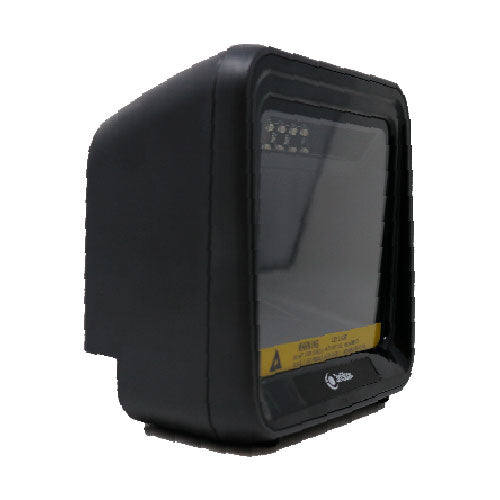

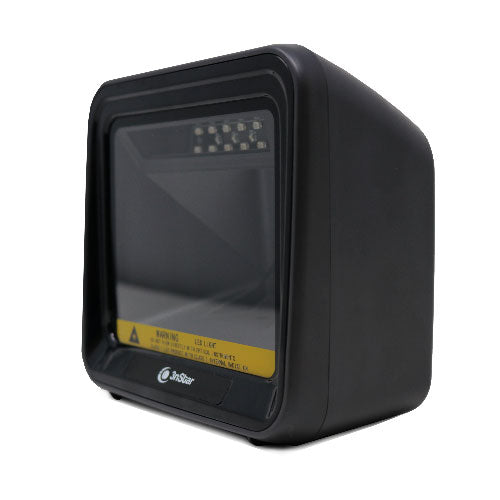

3nStar Hands Free Omni-directional Barcode Scanner 2D (SC550)
With its compact, modern design and powerful imaging capabilities, the SC550 fits easily into existing enclosures used in high-volume retail checkout environments such as convenience, drug, specialty, liquor and grocery stores.
The SC550 is an on–counter scanner that offers a feature set that puts it at the top of its class for performance, ease of deployment and total cost of ownership. No matter what barcodes appear at your POS, the SC550 can scan them all; 1D, 2D, printed and electronic.
- Omnidirectional: Provides scanning as an additional benefit to hand presentation applications
- “Powerful Imaging CapabilitiesExceptional scanning performance on 1D and 2D barcodes, plus the ability to read smartphone screens, digital wallets and printed identification cards”
- Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass.
Material |
ABS + PC
|
---|---|
Cable |
Standard 2.2M straight
|
Scan Rate |
60 frame per second
|
Depth of field |
Up to 45cm
|
Antiknock design |
|
Print Contrast |
20% minimum reflective difference
|
Minimum Resolution |
1D 5mil 2D 10mil
|
Light Source |
Red LED
|
Decode Capabilities 1D |
Codebar,Code128, Code39, Code39, Code93, Code11, EAN13,EAN8,GS1-Databar, GS1-128(EAN-128),Interleaved 2 of 5,Matrix 2 of 5,Industry 2 of 5,UPC-A,UPC-E,ISBN,ISSN, Code 11, MSI
|
Decode Capabilities 2D |
PDF417, Data Matrix, QR Code,Micro PDF417,Micro QR Code,Aztec Code
|
Operating Temperature |
0°C to 50°C (32°F to 122°F)
|
Storage Temperature |
-5°C to 55°C
|
Humidity |
5% to 95% relative humidity, non-condensing
|
Size and Weight |
158mm (H) x 100mm (D) x 95mm (W) - 530g (scanner only)
|
